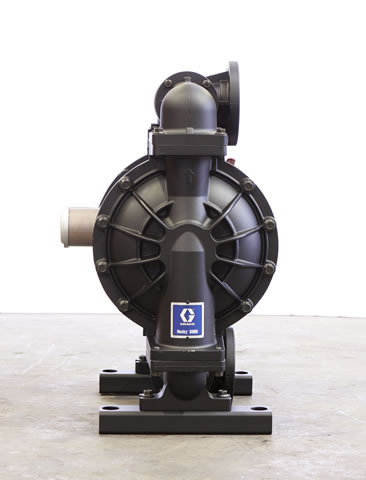

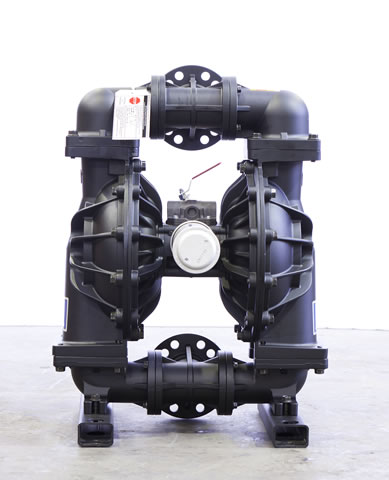

Husky 3300 Pump

The Husky™ 3300 is a heavy duty 3" pump with large flow paths for fluid transfer applications, including high-viscosity materials.

• Robust fluid section to handle the most abrasive applications
• Modular stall-free air valve design
• Four bolt joint design provides even sealing
• pressure for leak-free operation
• Externally serviceable pilot valves

The pumps are aluminium with Geolast® seats, balls and diaphragms which makes it the ideal fluid transfer pump for drilling applications.

• Classification: Group II Category 2 GD c IIC T4
• Maximum free-flow delivery – 300 gpm (1135 l/min)
• Maximum fluid working pressure – 125 psi (8.6 bar)
• Maximum size pumpable solids – 1/2" (13mm)

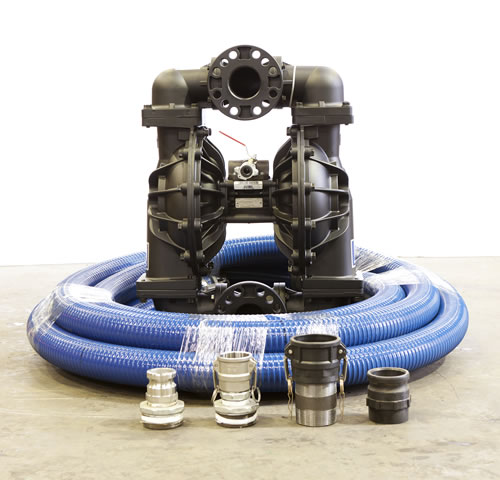

The unit is available for rental or purchase and comes supplied complete with:

• 2 off 3" x 15 Mtr Anti-Static Suction/Discharge Hoses

Dimensions and Weight:

• (L) 612mm x (W) 478mm x (H) 827mm
• Weight: 68kg

Pump Air Operation Animation

http://www.youtube.com/watch?v=FCmBM5-fJJg

Pump Fluid Operation Animation

http://www.youtube.com/watch?v=0WxAxXAqHEA
